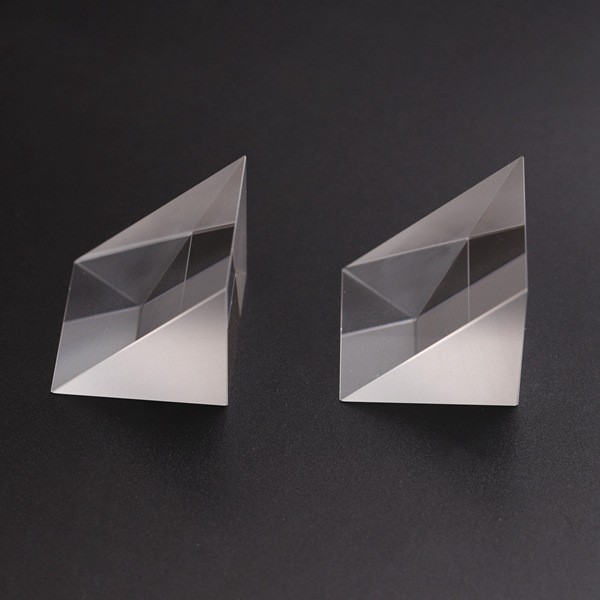

Optical Glass Right Angle Prism

Optical Prism

Optical Glass Right Angle Prism

Specifications:

Material : N-BK7
Diameter : 1mm ~ 300mm
Dimension Tolerance :+0.0/-0.1mm
Surface Quality :40/20 or better
Angle Tolerance :<3 arcmin
Clear Aperture :>90%

Surface Flatness : λ/8 , λ/4
Bevel : Protective bevel as needed
Coating :Upon your request

  • Product Detail
Right-angle prism is the most common type of prisms. It is used to re-direct a beam of light at 90 degrees from the the incident direction
or used as a 180 beam retro-reflector.  They are often coated with various optical coatings to form cubic beam splitters and color separation cubes used in various projection systems.
