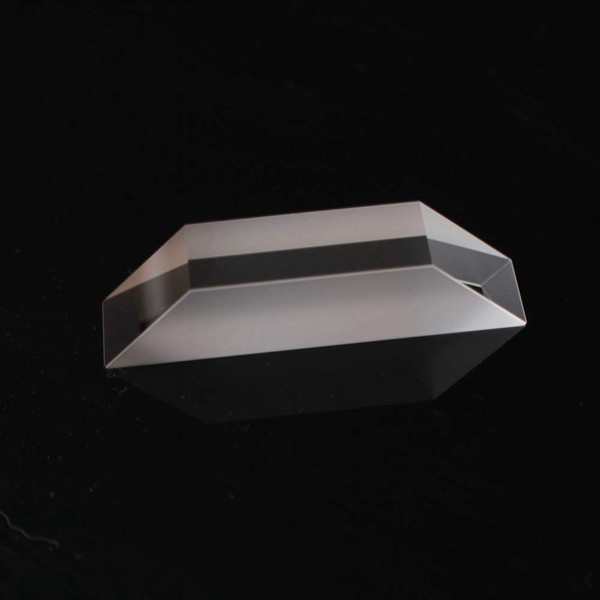

Optical Glass N-BK7 Dove Prisms

Optical Glass N-BK7 Dove Prisms

Specifications:

Material : N-BK7
Diameter : 1mm ~ 300mm
Dimension Tolerance :+0.0/-0.1mm
Surface Quality :40/20 or better
Angle Tolerance :<3 arcmin
Clear Aperture :>90%

Surface Flatness : λ/8 , λ/4
Bevel : Protective bevel as needed
Coating :Upon your request

Product Detail

Dove prism is a kind of image rotator. After the light passes through the prism, the image is reversed by 180°. In addition, when the prism is rotated about its optical axis, the rotation angle of the image is twice the rotation angle of the prism.
