High Precision Micro Achromatic Lens

Achromatic Lens

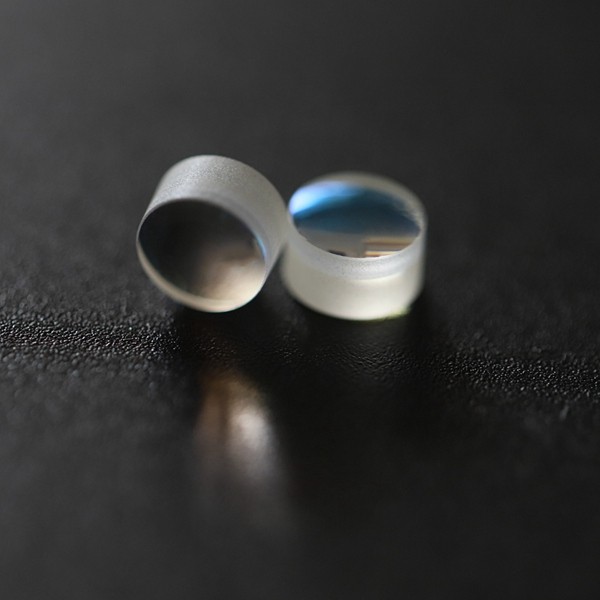

High Precision Micro Achromatic Lens

Specification :

Material : Crown Glass and Flint Glass

Diameter Tolerance : +0.0 , -0.05

Center Thickness Tolerance : ±0.1

Surface Quality : 40-20 scratch and dig

Centration : ±1 arc minutes

Surface Figure : lambda/4 @ 632.8nm

Clear Aperture : >90% of diameter

Bevel : protective chamfer

Coating : Upon requirement

  • Product Detail

Pandas Optic can manufacture the micro achromatic lens that the diameter less than 2mm. Achromatic lens can be used as collimators, focusing lenses or light collectors. They are designed to eliminate chromatic and spherical aberrations and perform well for all paraxial imaging tasks. These lenses are coated with single layer antireflection coating to reduce surface losses in the visible regions. Achromatic lenses are widely used today in achromatic telescopes, microscopes, and photographic lenses.
