We are specializing in developing, producing optical Lens

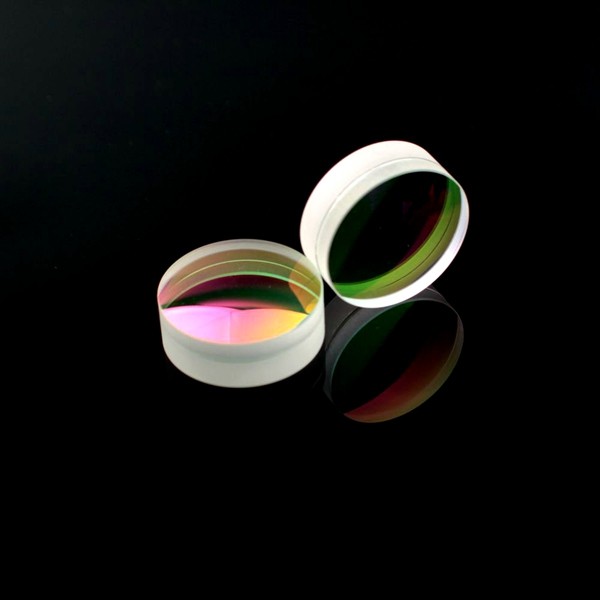

Broadband AR coated achromatic lenses

Achromatic Lens

Broadband AR coated achromatic lenses

Specification :

Material : Crown Glass and Flint Glass

Diameter Tolerance : +0.0 , -0.05

Center Thickness Tolerance : ±0.1

Surface Quality : 40-20 scratch and dig

Centration : ±1 arc minutes

Surface Figure : lambda/4 @ 632.8nm

Clear Aperture : >90% of diameter

Bevel : protective chamfer

Coating : Upon requirement

  • Product Detail
Achromatic lens can be used as collimators, focusing lenses or light collectors. They are designed to eliminate chromatic and spherical aberrations and perform well for all paraxial imaging tasks. These lenses are coated with single layer antireflection coating to reduce surface losses in the visible regions. Achromatic lenses are widely used today in achromatic telescopes, microscopes, and photographic lenses.
