G2 400-700nm 405nm 450nm blue laser collimating lenses

Collimator Lens

G2 400-700nm 405nm 450nm blue laser collimating lenses

Specifications:

Product Name: G2 lens

Lens Material : Single element ; Coated optical glass

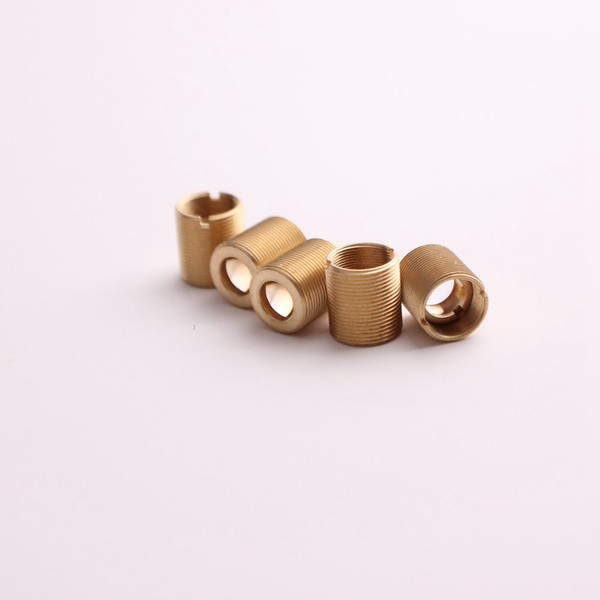

Lens Holder : 9mm x 0.5mm thread , 10mm length , brass

EFL ( Effective Focal Length): 4.02mm

CA (Clear Aperture) : 5.1mm

NA (Numerial Aperture) : 0.6mm

Coating : 400-700nm


  • Product Detail

G2 lens is the best choice for short ranges, as in an engraving machine. The G2 lens is a single lens enabling the maximum true power of the laser diode for rapid close-range burning and engraving. Advantage of G2 lens is 95% efficiency, reduces the beam aperture . Downsides Increase the beam divergence (thickness) and the beam profile.
