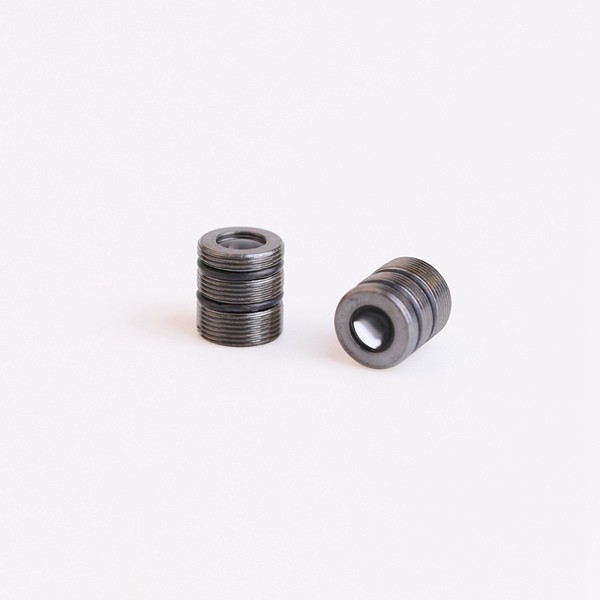

EFL 4.02mm S2 type mounted collimating glass lens

Collimator Lens

EFL 4.02mm S2 type mounted collimating glass lens

Specifications:

Lens Material : Single element ; Coated optical glass

Lens Holder : 9mm x 0.5mm thread , 10mm length , brass

EFL ( Effective Focal Length): 4.02mm

CA (Clear Aperture) : 5.1mm

NA (Numerial Aperture) : 0.6mm

SD (Diode to lens) : 2.357m

Coating :400-700nm/700-1100nm

  • Product Detail
M9x0.5 mm threaded housing , single glass lens design . This single element lens gives around 15-20% increase in output compared with the 3-element lenses with a reduction in beam quality.
