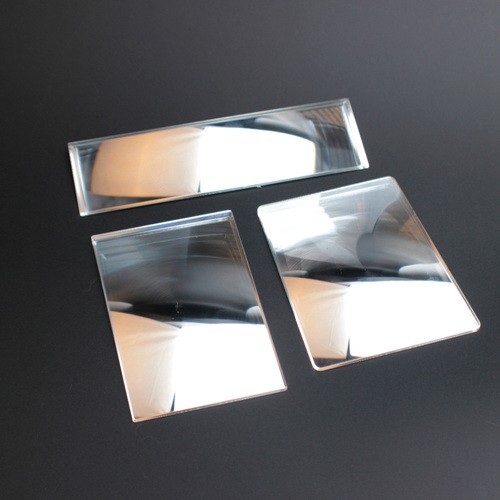

Wide Angle Fresnel Lens Mirror
Product Overview
The wide-angle Fresnel lens mirror is a lightweight and cost-effective optical solution for applications requiring a large field of view and precise light redirection. Its unique design combines the benefits of Fresnel lens technology with reflective properties, making it an excellent choice for projection, imaging, and optical alignment systems.
Application: Reflective Fresnel wide-angle lens is widely used in major banks ATM (automatic teller machine), bank windows, security, car mirrors and other fields.
Features.
1. The shape of flat mirror (the thinnest is 1mm), the effect of convex mirror, no spherical aberration, clear imaging, small deformation.
2, ultra-thin easy to install, can be cut into any shape
3, the surface is treated with reinforced coating to increase the hardness, wind and sun protection, UV resistance, anti-aging, scratch resistance; aluminum mold surface spraying protective paint, waterproof, moisture-proof, suitable for a variety of environments.
4, the double-sided adhesive on the back of the wide angle mirror, easy to use, that is, ready to use.
Installation method.
1. The wide-angle lens must be installed on a flat surface without irregularities. Wipe off dirt, moisture, oil, and pre-dry.
2. Then peel off the release paper behind the wide-angle lens and attach it to the label.
3. Press firmly and evenly on the surface of the wide angle lens to make sure that the wide angle lens is stuck and sticks to the wide angle lens all the time.
4. You can clean it with a mild detergent, and then dry it with a clean cotton cloth.
Caution.
1. It is strictly forbidden to depict the surface of the wide-angle lens with sharp objects.
2. Applicable ambient temperature: -30°C~ + 70°C.
3. Do not bend the wide-angle lens or any other external force.
4. Wipe off the dust on the wide-angle lens with a cloth.
5. When peeling off the release paper behind the wide angle lens, please do not touch or repeatedly touch or peel off, otherwise it will affect the adhesion.
6. Do not stick to the skin.
Applications
- Projection Systems: Enhances the wide-angle capability for projectors and displays.
- Imaging Devices: Provides precise light control for cameras and imaging equipment.
- Augmented Reality (AR) Systems: Used for optical alignment and light redirection.
- Automotive Displays: Supports HUD (Heads-Up Display) and rear-view optical systems.
- Solar Concentrators: Improves efficiency by redirecting sunlight to energy-concentrating areas.
Specifications
| Parameter | Value |
|---|---|
| Material | PMMA / Optical Glass |
| Focal Length Range | 50 mm to 500 mm |
| Diameter/Dimensions | 50 mm to 500 mm |
| Thickness | 0.5 mm to 2 mm |
| Groove Pitch | 0.2 mm to 0.5 mm |
| Reflectivity | >90% (coated options) |
| Field of View | Up to 180° |
Customization Options
- Coatings: Anti-reflective or highly reflective coatings for specific wavelengths.
- Shapes: Round, square, or custom geometries.
- Groove Design: Optimized for specific focal lengths or applications.
Advantages
- Compact and lightweight design.
- Cost-effective compared to traditional optics.
- Excellent wide-angle performance.
- Suitable for both reflective and transmissive applications.
Why Choose Us?
- Extensive expertise in Fresnel lens manufacturing.
- Custom solutions tailored to your needs.
- Competitive pricing and reliable global shipping.
- Responsive customer support and technical assistance.
Call to Action (CTA)
Optimize your optical systems with our wide-angle Fresnel lens mirrors. Contact us today for inquiries, custom specifications, and bulk orders.
