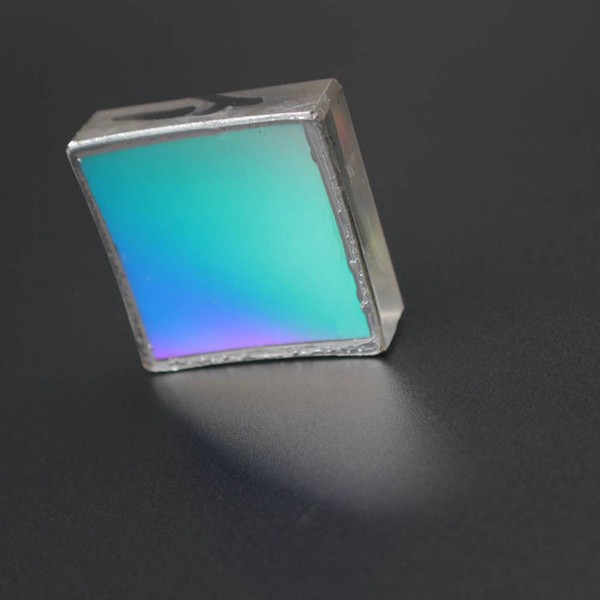

1200 Grooves 32 x 32mm holographic diffraction grating

Diffraction Grating

1200 Grooves 32 x 32mm holographic diffraction grating

Specifications:

Material : N-BK7
Size : 32mm x 32mm x 9.5mm

Wavelength : 190nm to 900nm
Grooves(Line/mm) : 1200L/mm

  • Product Detail

What is holographic grating?
Holographic gratings are formed by an interference fringe field of two laser beams whose standing wave pattern is exposed to a polished substrate coated with photoresist. Processing of the exposed medium results in a pattern of straight lines with a sinusoidal cross section.

Concave holographic grating is a reflection grating made by double light interference method, it has the characteristics of collimation, focusing and spectroscopy, with low stray light, simple structure and other advantages, is the ideal spectroscopic element for small monochromator, mainly used in semi-automatic biochemical analysis of liquid chromatography and other instruments.


200 Grooves 32x32mm Holographic Diffraction Grating | High Precision & Efficiency

Our 1200 Grooves 32 x 32mm Holographic Diffraction Grating is a precision-engineered optical component designed for spectroscopy, laser systems, and advanced optical instruments. With 1200 grooves per millimeter and a compact square design, this grating ensures high resolution and efficiency across a wide range of applications. Manufactured using advanced holographic techniques, it delivers reliable and consistent performance.

Key Features:

  • High Groove Density: 1200 grooves/mm for enhanced resolution and diffraction efficiency.
  • Compact Design: Standard 32x32mm size for easy integration into optical setups.
  • Holographic Technology: Reduces stray light and ensures superior optical quality.
  • Wide Spectral Range: Suitable for UV, Visible, and IR applications.
  • Durable Material: High-quality optical substrate for long-lasting performance.

Applications:

  1. Spectroscopy: High-resolution spectral analysis for research and industrial applications.
  2. Laser Systems: Enhances beam diffraction and wavelength separation.
  3. Optical Instruments: Ideal for monochromators, spectrophotometers, and interferometers.
  4. Scientific Research: Used in laboratories for precision optical experiments.
  5. Educational Tools: Perfect for teaching diffraction and wave optics concepts.

Technical Specifications:

  • Groove Density: 1200 grooves/mm
  • Dimensions: 32mm x 32mm
  • Spectral Range: UV, Visible, and IR spectra
  • Efficiency: High diffraction efficiency across multiple wavelengths
  • Substrate Material: High-purity optical glass or quartz
  • Surface Finish: Polished with low scatter and high precision
