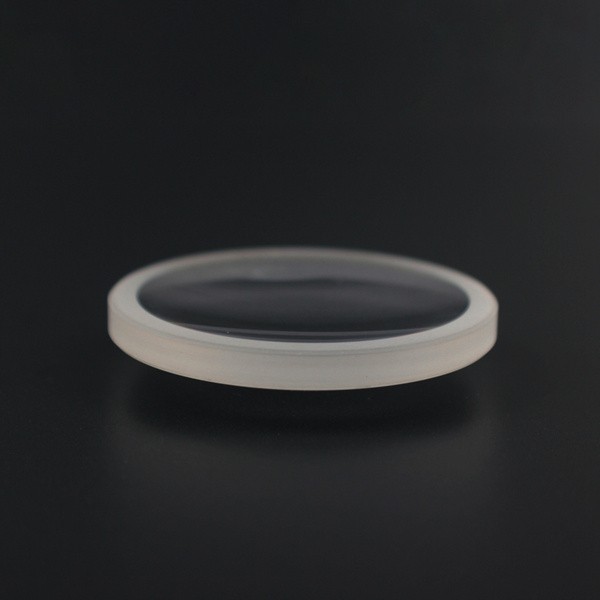

Optical Glass Spherical Meniscus Lens

Optical Glass Spherical Meniscus Lens

Specifications:

Material : Optical glass
Diameter : 1mm ~ 300mm
Focal Legnth Tolerance :+/-1%
Diameter Tolerance :+0.0/-0.1mm
Thickness Tolerance :+/-0.1mm
Surface Quality :40/20
Centration :<3 arc minutes
Clear Aperture :>90%
Bevel : Protective bevel as needed
Coating :Upon your request

Product Detail

Meniscus lenses are divided into positive meniscus and negative meniscus lenses. A meniscus lens has one side of the lens that is convex and one side that is concave. It can be a converging lens or a diverging lens, determined by the refractive index, curvature and radius together. Widely used in photographic systems, projection systems, imaging systems, optical viewfinders, and laser measurement systems.
