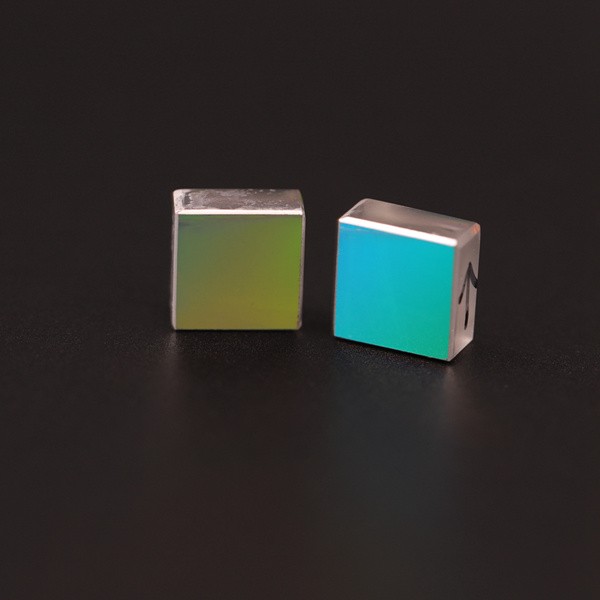

1200 Grooves 12.7mm square 250nm Diffraction Grating

Diffraction Grating

1200 Grooves 12.7mm square 250nm Diffraction Grating


Specifications:

Material : N-BK7
Size : 12.7mm x 12.7mm
Wavelength : 200nm to 900nm
Grooves(Line/mm) : 1200L/mm

Blazed Wavelength : 250nm

Blazed Angle : 8.6 degree

Clear Aperture :90%

  • Product Detail

1200 Grooves 12.7mm Square 250nm Diffraction Grating | High Precision & Compact Design

Our 1200 Grooves 12.7mm Square 250nm Diffraction Grating is a compact, high-precision optical component specifically designed for UV spectroscopy and other optical applications. With 1200 grooves per millimeter and an optimized design for 250nm wavelengths, it ensures excellent diffraction efficiency and resolution, making it ideal for scientific, industrial, and educational purposes.

Key Features:

  • High Groove Density: 1200 grooves/mm for precise diffraction and high resolution.
  • Compact Design: 12.7mm square size for integration into small optical systems.
  • UV Optimization: Tailored for peak efficiency at 250nm wavelengths.
  • Durable Construction: Made with high-quality optical glass or quartz for reliability.
  • Custom Options: Fully customizable sizes and specifications to meet your needs.

Applications:

  1. UV Spectroscopy: Provides accurate and high-resolution spectral analysis in the UV range.
  2. Optical Instruments: Used in compact spectrophotometers, monochromators, and detectors.
  3. Scientific Research: Ideal for laboratory experiments and precision optical setups.
  4. Educational Tools: Suitable for teaching and demonstrating wave optics and diffraction.
  5. Laser Applications: Enhances beam diffraction and wavelength separation in laser systems.

Technical Specifications:

  • Groove Density: 1200 grooves/mm
  • Dimensions: 12.7mm x 12.7mm square
  • Wavelength Range: Optimized for 250nm (UV spectrum)
  • Efficiency: High diffraction efficiency in the UV range
  • Substrate Material: Optical-grade glass or quartz
  • Surface Finish: Polished for high precision and minimal scatter

Why Choose Our Diffraction Gratings:

  • Compact Size: Perfect for integration into small and precise optical setups.
  • UV Efficiency: Optimized for superior performance at 250nm.
  • Customization Available: Tailored groove density, size, and materials to meet your specific needs.
  • Durability & Quality: Built with high-grade materials for reliable and long-term use.
  • Global Service: Fast shipping and professional support worldwide.

More grating, please check our catalogue file: Catalogue For Plane Diffraction Grating
