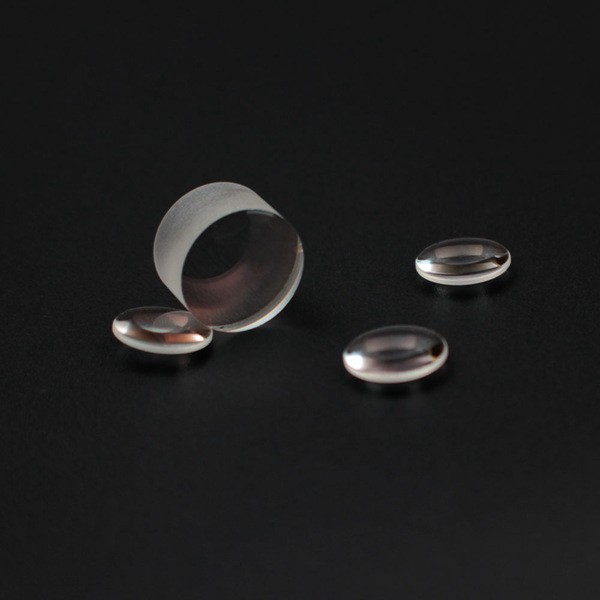

VIS AR Coated Plano Convex (PCX) Lenses

VIS AR Coated Plano Convex (PCX) Lenses

Specifications:
Material:BK7,optical glass,fused silica,Germanium,silica,CaF2 and MgF2
Focal Legnth Tolerance:+/-1%
Diameter Tolerance:+0.0/-0.1mm
Thickness Tolerance:+/-0.1mm
Surface Precision:Power(N)<2 Irregularity(N)<0.5
Surface Quality:40/20,60/40
Centration:<3 arc minutes
Clear Aperture:>90%
Bevel:<0.2*45degree
Coating:Upon your request

Product Detail

Plano convex lens is employed in microscopes and magnifying glasses to converge all the incoming light rays to a specific point.
The lens is used as a lens system in cameras as they focus light rays for a clear image.Lens has medical purposes as well, like the correction of hyperopia It is used in a projector .
