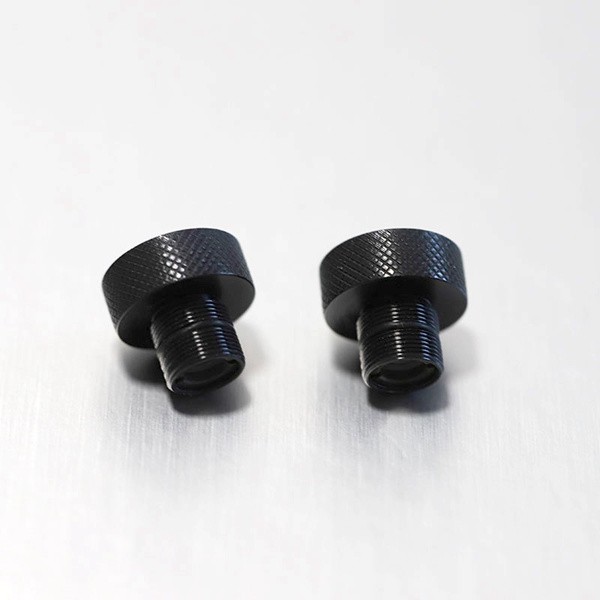

405nm EFL9.001mm Laser Collimator Lens

Collimator Lens

405nm EFL9.001mm Laser Collimator Lens

Specification:

Casing: M9 x 0.5 thread

Focal length:9.001mm

Length: 14mm

Working distance:4.251mm
Numerical Aperture:0.27
Collimation Degree:>=0.3mrad
Clear Aperture:5.0mm

Transmission:>=95%

Optics: Two glass single lens

Coating:A:BBAR Ravg<1% from 400-700nm and 700-1100nm
  • Product Detail

Coating 400-700nm and 700-1100nm is optional. Other Wavelength can be custom made.

The focal length is different at different wavelength:

At 405nm, the focal length is 9.001mm;

At 650nm, the focal length is 9.795mm;

At 850nm, the focal length is 9.991mm.
