3mm x 3.2mm Plano Convex Cylindrical Len

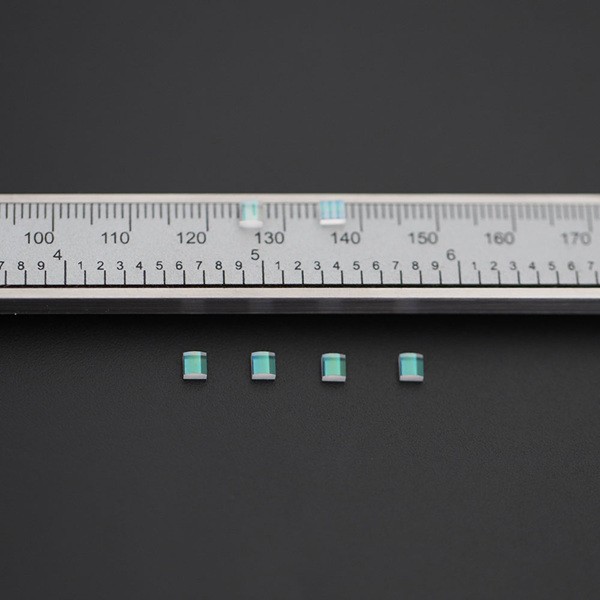

3mm x 3.2mm Plano Convex Cylindrical Lens

Specifications:

Material : N-BK7, N-SF1 , Fused Silica , N-SF10 etc
Diameter : 2mm ~ 300mm
Focal Legnth Tolerance :+/-1%
Diameter Tolerance :+0.0/-0.1mm
Thickness Tolerance :+/-0.1mm
Surface Quality :40/20 or better
Centration :<3 arc minutes
Clear Aperture :>90%
Bevel : Protective bevel as needed
Coating :Upon your request

Product Detail

Combined with a plano-convex cylindrical lens, it can be used to shape the elliptical beam of a semiconductor laser into a circular beam. Plano-concave cylindrical lens can be used in projection systems, imaging systems, optical instruments, and laser measurement systems
